Leica Disto D510 Laser Measurer

SKU: LG792290
$902.00

Not Available

Replaced by Leica Disto D5

Leica Disto D5 Laser Distance Meter

Leica Disto D5 Laser Distance Meter

SKU: LG950908

$880.00
Need more info? Call us +61 8 9335 1718

(DISCONTINUED) REPLACED BY ALL NEW DISTO D5

D510 Laser Measurer - The Best outdoor functionality and apps

Leica Disto D510 Video

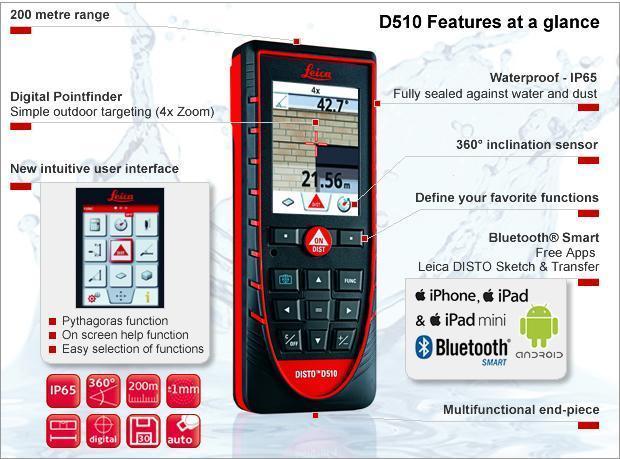

Colour display, digital pointfinder, TILT sensor: Reliable outdoor applications.

Leica DISTO™ D510 Best outdoor functionality and apps The Leica DISTO™ D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future. . Pointfinder with 4x zoom . IP 65 water jet protection and dust-tight . 360° tilt sensor . Smart Horizontal Mode™ . Height tracking . Bluetooth® Smart . Free App – Leica DISTO™ sketch

The Leica DISTO™ D510 is a 14 measurement mode LDM that is accurate to 1/16th of an inch. It is IP65 rated against dust, dirt and rain and features a point finder, a bright LCD screen, a 360° tilt sensor, and Bluetooth Smart.

The D510 laser module can read a target at distances that exceed your ability to see the laser point. With the point finder  -- a 4x zoom digital camera -- you find your target in the display, extending the useable range to the ~650ft max.

The farther you can shoot, the more potential there is for something to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.

Features

  • Minimum / maximum
  • Permanent measurement
  • Plus / minus
  • Area / volume
  • Room function summary
  • Indirect height measurement (Pythagoras)
  • Measurement despite obstructions
  • Measurement of facade areas
  • 360° TILT  sensor
  • Bluetooth® smart

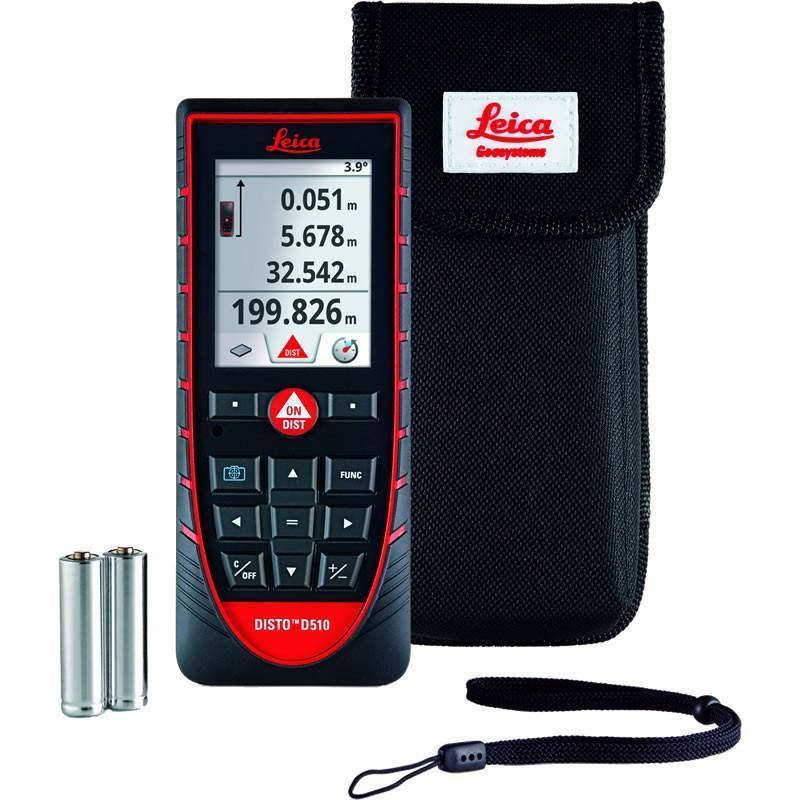

Includes

  • Holster
  • Hand loop
  • Batteries

Specifications

Distance 0.05 – 200 m
Accuracy ± 1.0 mm
Dust / water protection  IP 65
Weight  198 g
Laser class 2



ISO 16331-1 certified typical measuring accuracy ± 1 mm
ISO 16331-1 certified typical range up to 200 m
Measuring units 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32
Power Range Technology™ Yes
Distance in m 10, 50, 100 m
Ø of the laser dot in mm 6, 30, 60 mm
Tilt sensor measuring range 360°
Pointfinder with 4x zoom Yes
Memory Last 30 displays
Free App Yes
Data interface* Bluetooth® V4.0 Smart
Measurements per set of batteries up to 5000 (with Li-iron LFP batteries)
Multifunctional end-piece Automatic recognition
Batteries type AA 2 × 1.5 V (Ships with Li-ion rechargeable)
Tripod thread ¼”- 20
Protection class IP65 – water jet protection and dust-tight
Dimensions 143 x 58 x 29 mm
EAN/UPC 7640110694237, 7640110694251 (North America)



Download Brochure



Error 156: The transverse tilt is greater than +/- 10°
To resolve: Hold the instrument without any transverse tilt


Error 162: Calibration mistake
To resolve: Make sure the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the message still occurs, contact the dealer


Error 204: Calculation error
To resolve: Repeat measurements, make sure to follow the sequence according to the manual


Error 205: S910 memory full
To resolve: Delete memory


Error 220 & 224: Hardware error
To resolve: If the message continuously appears, contact the dealer for service


Error 240 & 245: Data transfer error
To resolve: Re-connect device with computer and repeat procedure


Error 252: Temperature too high
To resolve: Let device cool down


Error 253: Temperature too low
To resolve: Let device warm up


Error 254: Battery voltage too low for measurements
To resolve: Change batteries


Error 255: Received signal too weak, measuring time too long
To resolve: Change target surface (i.e. white paper)


Error 256: Received signal too high
To resolve: Change target surface (i.e. white paper)


Error 257: Too much background light
To resolve: Shadow target area


Error 258: Measuring outside of measuring range
To resolve: Correct range


Error 260: Laser beam interrupt
To resolve: Repeat measurement


Error 284: Laser defect
To resolve: If message continuously appears, contact the dealer for service


Error 288-294: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 300: Smart base not folded out
To resolve: Fold out Smart Base


Error 301: Device was moved, levelling not valid anymore
To resolve: Perform levelling again. Levelling with invalid levelling is possible, but it will affect the accuracy


Error 302: S910 "Point data transmission" is selected, but WLAN is off
To resolve: Switch on WLAN


Error 303 - 306: Error with Leica DST 360 Adapter
To resolve: Repeat procedure and if message still occurs, contact your dealer


Error 340: WLAN: Data transfer error
To resolve: Repeat procedure


Error 341: Authentication error
To resolve: Use correct password


Error >1000: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 14041: Smart Base defect
To resolve: If message continuously appears, contact the dealer for service

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.
